AC9C Sensor with 8 Gold working electrodes and Silver reference electrode (5/pk)
PSAC9C-W1-RS
AC9C Sensor with 8 Gold working electrodes and Silver reference electrode (5/pk)

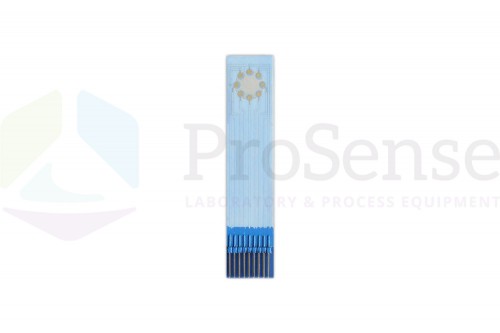

This screen printed amperometric sensor has nine electrodes, eight working electrodes and one reference electrode. It is formed on a corundum base. It is 5.9 cm long, 1.3 cm wide, 0.63 mm thick, and weighs 1.7 grams. The diameter of the working electrode areas are 1.00 mm ±0.05 mm. There is a silver electrical contact at the end of each sensor and this conductive path is covered by a dielectric protection layer. They can be ordered in multiples of 5 sensors. The PSKA9S is an appropriate adapter for these sensors.
AC9C Sensor with 8 Gold working electrodes and Silver reference electrode (5/pk)
| Product number | PSAC9C-W1-RS |
| OEM reference | AC9C-W1-RS |
| Working electrode type | Gold working electrode(s) |
This screen printed amperometric sensor has nine electrodes, eight working electrodes and one reference electrode. It is formed on a corundum base. It is 5.9 cm long, 1.3 cm wide, 0.63 mm thick, and weighs 1.7 grams. The diameter of the working electrode areas are 1.00 mm ±0.05 mm. There is a silver electrical contact at the end of each sensor and this conductive path is covered by a dielectric protection layer. They can be ordered in multiples of 5 sensors. The PSKA9S is an appropriate adapter for these sensors.
