AC1 Sensor with Gold working electrode and Silver reference electrode (20/pk)
PSAC1-W1-RS
AC1 Sensor with Gold working electrode and Silver reference electrode (20/pk)

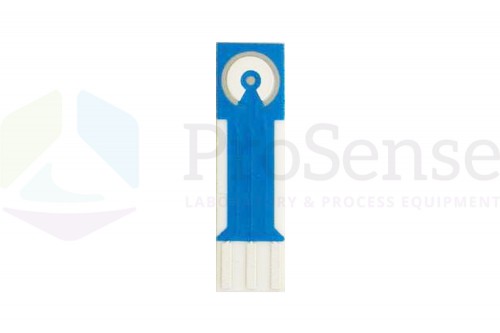

This screen printed amperometric sensor has three electrodes and is formed on a corundum base. It is 2.54 cm long, 0.73 cm wide, 0.63 mm thick, and weighs 0.5 grams. The diameter of the working electrode area is 1.00 mm ±0.05 mm. There is a silver electrical contact at the end of each sensor and this conductive path is covered by a dielectric protection layer. They can be ordered in multiples of 20 sensors. The PSSPEHOLDER is an appropriate adapter for these sensors.
AC1 Sensor with Gold working electrode and Silver reference electrode (20/pk)
| Product number | PSAC1-W1-RS |
| OEM reference | AC1-W1-RS |
| Working electrode type | Gold working electrode(s) |
This screen printed amperometric sensor has three electrodes and is formed on a corundum base. It is 2.54 cm long, 0.73 cm wide, 0.63 mm thick, and weighs 0.5 grams. The diameter of the working electrode area is 1.00 mm ±0.05 mm. There is a silver electrical contact at the end of each sensor and this conductive path is covered by a dielectric protection layer. They can be ordered in multiples of 20 sensors. The PSSPEHOLDER is an appropriate adapter for these sensors.
