Fully Equipped H-Cell Kit
QVIP-HC50
Fully Equipped H-Cell Kit

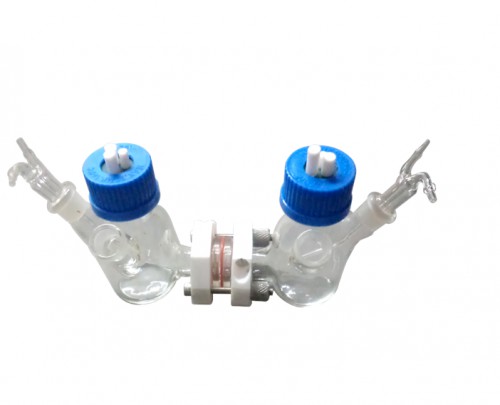

The IP-HC-50 is a fully equipped, horizontally mounted and a dual compartment electrochemical H-Cell set-up for a wide variety of studies that require a separate compartment for counter and / or reference electrodes. Avaialble Volumes:
Fully Equipped H-Cell Kit
| Product number | QVIP-HC50 |
| OEM reference | IP-HC50 |
The IP-HC-50 is a fully equipped, horizontally mounted and a dual compartment electrochemical H-Cell set-up for a wide variety of studies that require a separate compartment for counter and / or reference electrodes. Avaialble Volumes:
- 25ml
- 100ml
- 250ml
- 500ml
- 1000ml
The construction is gas-tight having two separate chambers, each equipped with gas inlet and outlet. This allows bubbling the solution and evacuating gases. Chambers can be separated with an ion-exchange membrane (DuPont’s Nafion® membrane - not included, so the electrochemical products appearing at working and counter electrode do not affect the opposite electrode.
Includes:
Glass reservoirs with three-electrode set-up (2), Spacer (2), Grip nuts (2), Screws (2), Purge adaptor (2), Teflon support holder (2), Top silicon dummy (4), Plugs (6), Silicon tube 0.5 meters (4), Silicon septa (6)
Related applications:
Glass reservoirs with three-electrode set-up (2), Spacer (2), Grip nuts (2), Screws (2), Purge adaptor (2), Teflon support holder (2), Top silicon dummy (4), Plugs (6), Silicon tube 0.5 meters (4), Silicon septa (6)
Related applications:
- Electrochemical water splitting - HER / OER or any such electrocatalysis applications
- Redox flow battery setup
- Electrochemical synthesis / Hydrogen Production
- Carbon Dioxide Reduction Studies
- Membrane research: Proton conductivity, Ionic conductivity, membrane efficiency
- Reference electrode testing
- ASTM grade Corrosion studies – Hydrogen Permeation
- Fuel Cell Studies: Hydrogen peroxide fuel cell, enzymatic fuel cell research, microbial fuel cell research, etc.
